EWO COMPLETE CHEVY 10 BOLT STEERING KIT WITH KNUCKLE FOR DANA 44 APPLICATION

Complete High Quality Chevy 10 Bolt High Steer Set Up. The Kit is Complete and also comes with DOM Tubing

Arms are made with Domestic Billet Blocks and Machined in-house to ensure Life Time Warranty. Arms are Whooping 1.25” Thick.

Tie Rod Ends are made Metal to Metal with Spring Technology way beyond any Expectations.

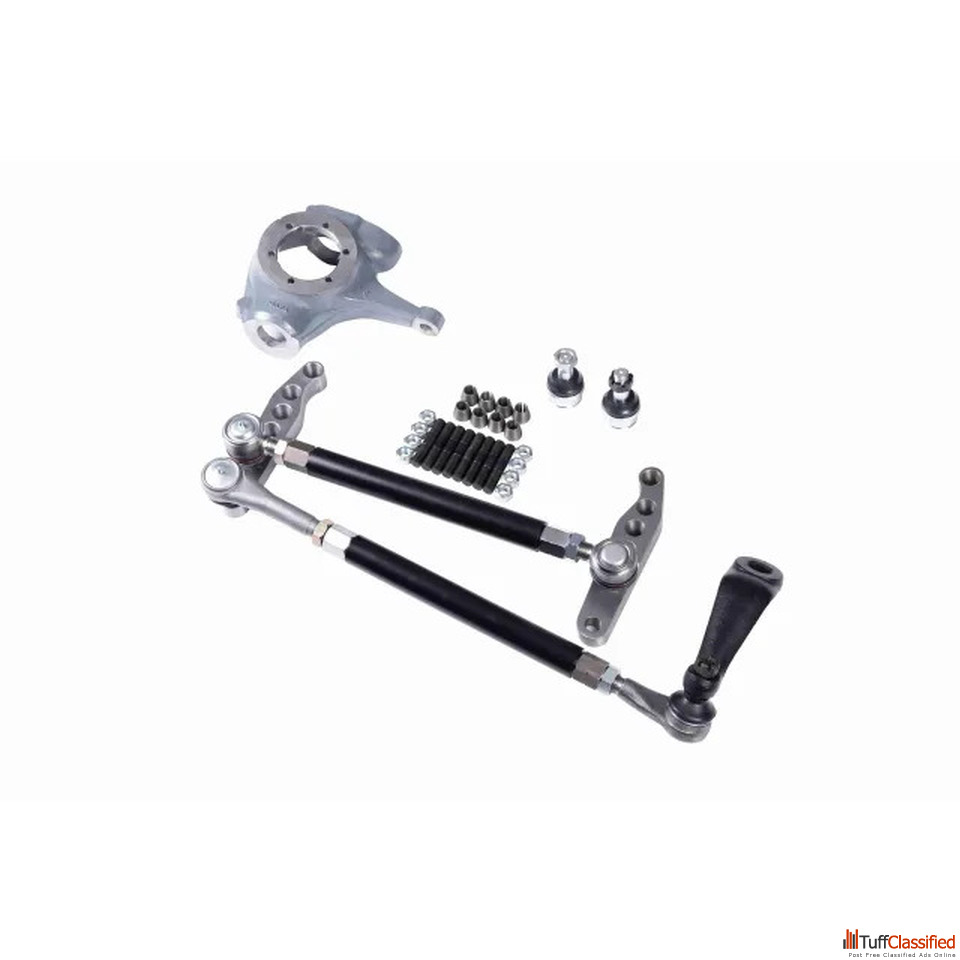

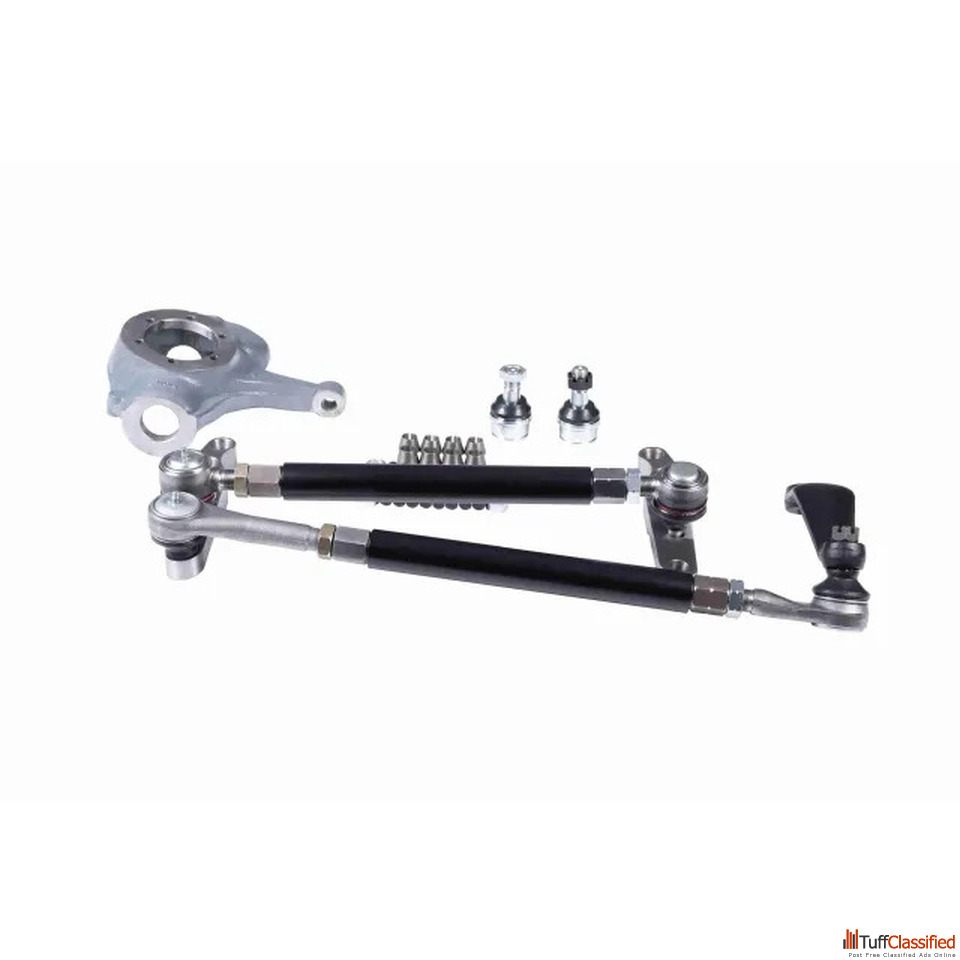

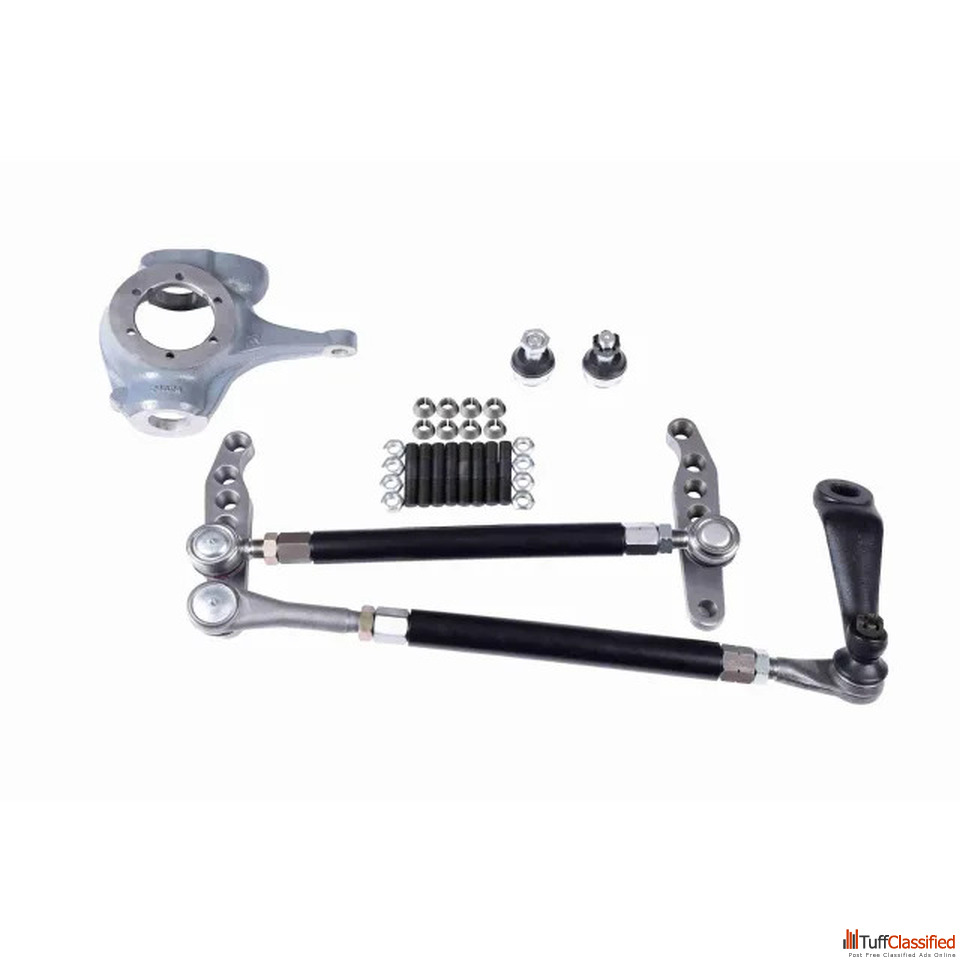

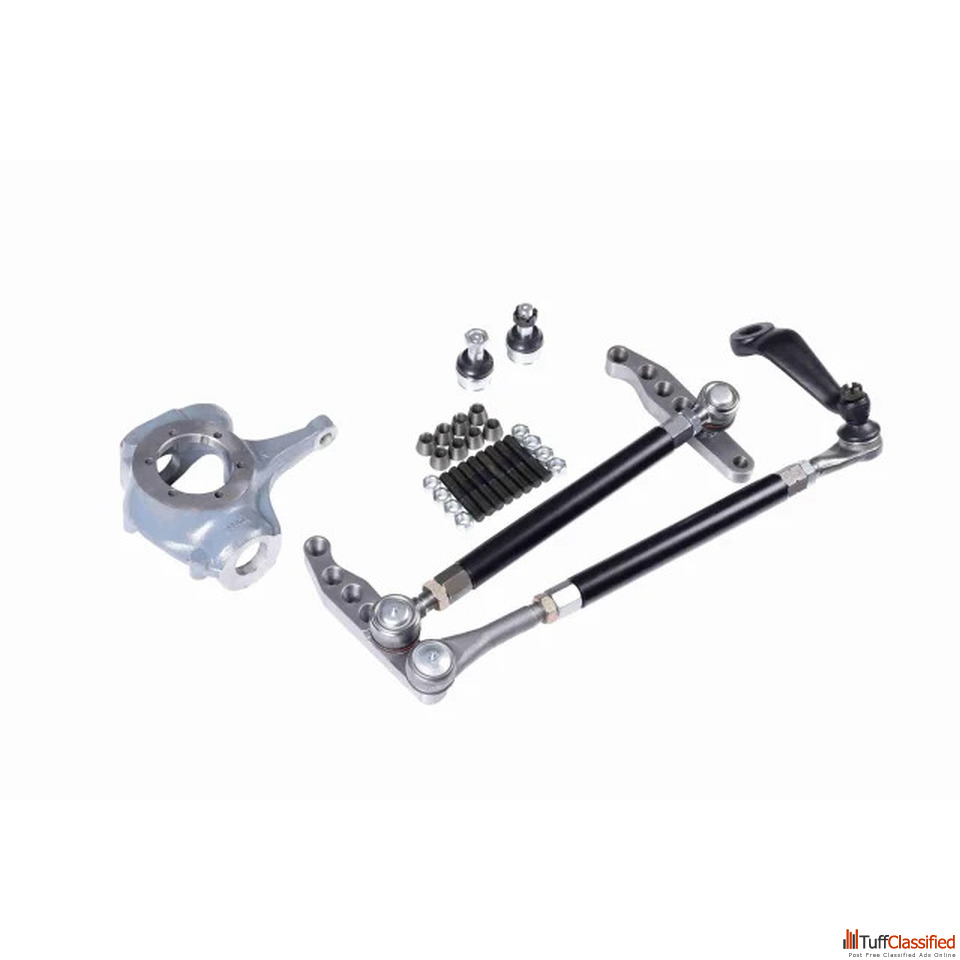

Kit Includes:

1 - Chevy/ GM Corporate 10 Bolt EWO High Strength Ductile Iron Knuckle with a Bottom Up Taper

1 – Driver Side Arm (1.25” Thick) Tapered for the 7/8” Chevy ¾ Ton Tie Rods

1 - Passenger Side Arm (1.25” Thick) tapered for 7/8” Chevy ¾ Ton Tie Rods

1 - 54” x 1.50” x .250” DOM Tubing Length

1 - 43” x 1.50” x .250” DOM Tubing Length

1 - ES 2026 R Drag Link End with Grease Fitting, Castle Nut and Cotter Pin

1 - ES 2027 L Drag Link End with Grease Fitting, Castle Nut and Cotter Pin

1 - ES 2234 R Tie Rod End with Grease Fitting, Castle Nut and Cotter Pin

1 - ES 2234 L Tie Rod End with Grease Fitting, Castle Nut and Cotter Pin

8 – High Strength 9/16 – 18” Dana 44 Studs

1 – 3" Drop Forged Pitman Arm (32 Splines) Fully Indexable

8 - Conical Washers

8 - Lock Nuts

2 - 7/8 – 18 Left Inserts/Tube Adapters/ Weld Bungs

2 - 7/8 – 18 Right Inserts/Tube Adapters/ Weld Bungs

2 - 7/8-18 Left Hand Jam Nuts

2 - 7/8-18 Right Hand Jam Nuts

1 - All Metal Dana 44 Upper Ball Joint

1 - All Metal Dana 44 Lower Ball Joint
