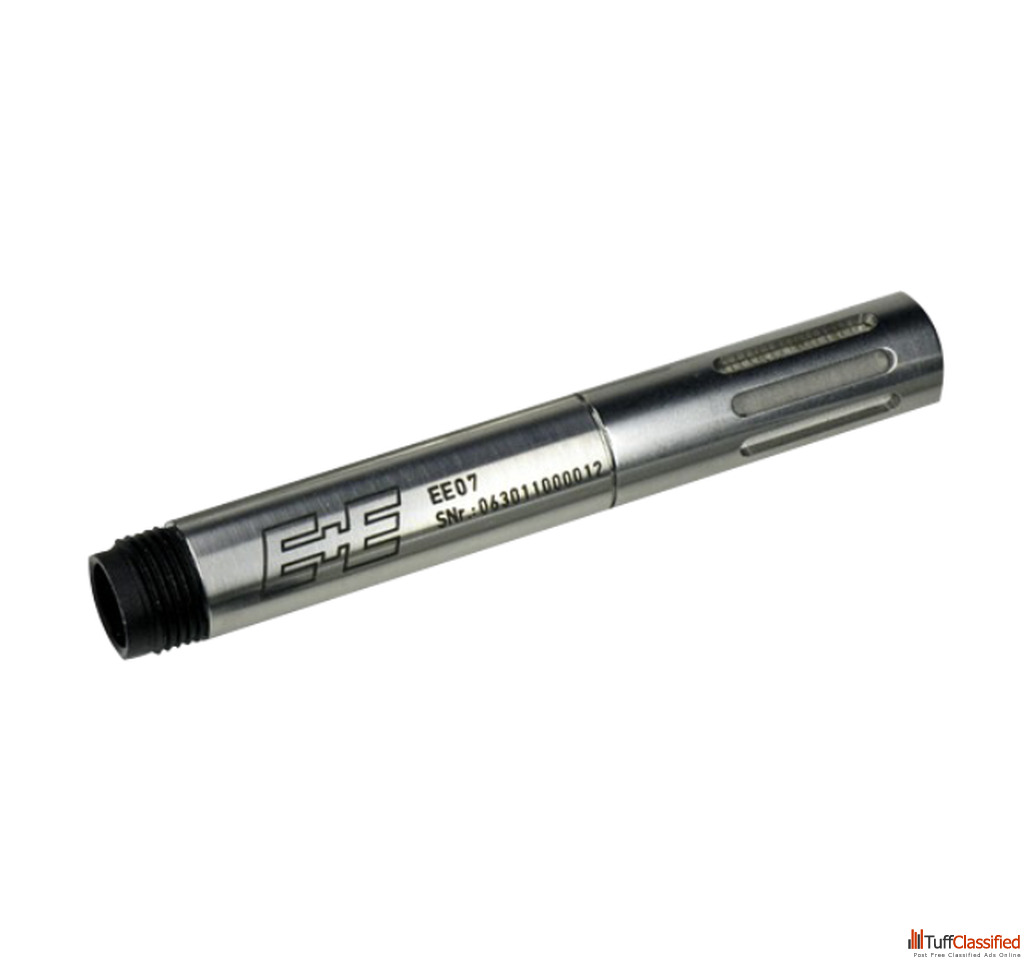

EE07 Temperature Probe with Digital Interface in Perth Australia Instromart

The EE07 is a compact, digital-output sensor module designed for precise and stable measurement of humidity and temperature. Distributed by Instromart, this probe is ideal for OEM integration and industrial applications, where space, accuracy, and low power consumption are critical. Its robust housing, digital interface, and interchangeable probe design make it versatile for embedded and field-level installations.



Specifications
Humidity Range 0 to 100 % RH (non-condensing)
Temperature Range -40 to +80 °C
Humidity Accuracy ±2 % RH (0–90 % RH), ±3 % RH (90–100 % RH)
Temperature Accuracy ±0.1 °C at 20 °C
Output Interface 2-wire digital (E2 protocol)
Power Supply 3.8 – 5.5 V DC (standard), 2.7 – 5.5 V DC (low power model)
Current Consumption <1.5 mA (standard), <6 μA in sleep mode (AF4 version)
Protection Class IP65
Filter Options Metal grid, PTFE membrane, sintered steel, H₂O₂-resistant filters
Housing Materials Polycarbonate or stainless steel
Connection Type M12x1 4-pin connector
Max Cable Length Up to 30 meters
Configuration Tool Optional USB adapter and software (PCS10)
Start-Up Time <0.3 seconds
